FEATURES
* All crankshafts are forged with excellent steel material and their surfaces are reinforced with treatment for superior wear resistance. In addition, balance blocks are used to reduce vibrations when in operation. * The compressor ring and oil-control ring undergo precision processing ensure tight sealing and low oil-consumptio, resulting in low carbon deposits at the valve bank and allowing easy maintenance. * The use of suction / discharge valves made of Swedish steel can neutralize the stress of precision turning and grinding, enhancing shock endurance, temperature tolerance, and toughness. * The inside of the cylinders are processed with CNC precision, which ensures excellent seal fitting and a low coefficient of friction, reducing compressor leakage and power consumption. * Exquisite structural design with an automatic unloader valve, allowing for safe operation. * High-efficiency heat radiating fins and a cooling copper tube design can reduce the temperature of the compressed air and enhance the efficiency of the compressor.
INSTRUCTIONS
The Fu Sheng A series air cooling reciprocating air compressor is designed for general industry use. Its standard operating pressure falls between 7 and 12 kg/cm2G and is suited for applications requiring variable high efficiency piston displacement volumes. The A series compressor runs from 0.37KW (1/2hp) to 15KW(20hp) and is designed for heavy-duty applications, low speed operation, and prolonged use. It is equipped with a fully-automatic and semi-automatic control for greater energy efficiency during loading/unloading or shut-down. It is suitable for use in industries involving automobile maintenance, paint and sprays, materials production, textile and tires.
PARTS AND MATERIALS

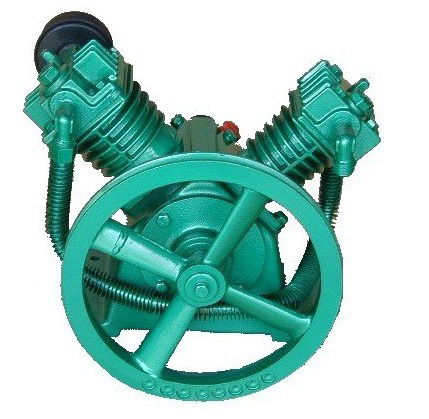

1. Cylinder heads - Deep directional fins provide quick cooling; compact streamlined air passages in the cylinder head permit fast and efficient flow of cooler intake air and rapid removal of discharge air. 2. Crankcase - The extra-large crankcase with a big oil reservoir ensures cooler running and better lubrication. 3. Balanced Fan-type flywheel - Airfoil-type spokes provide a continuous powerful blast of cooling air for all portions of the compressors; balancing ensures that operation occurs smoothly with low levels of vibration. 4. Connecting Rods - All units feature a precise bore and industrial-quality connecting rods with a splash lubrication. 5. Suction strainer - The permanent type strainer effectively filters air and muffles air intake noise. It can easily be removed for periodic cleaning. 6. Main bearings - To ensure long service life and easy maintenance, high quality ball bearings or tapered roller bearings are used in Fu sheng compressors.
MODEL RANGE AND PRODUCTS

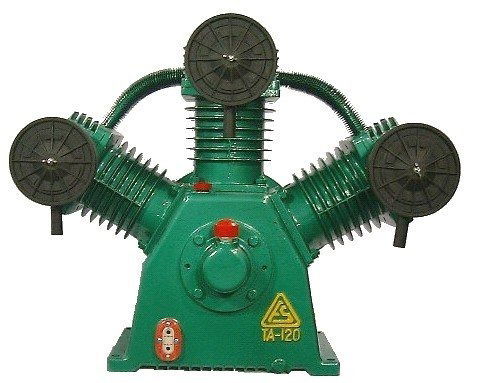

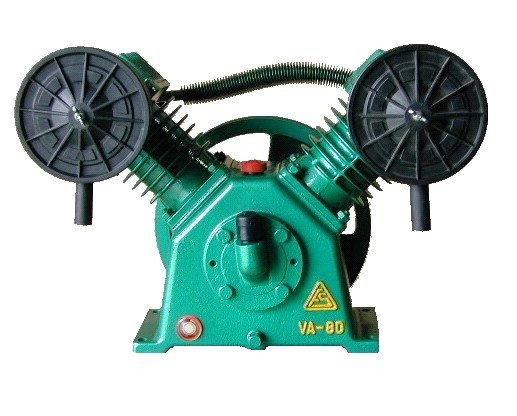

SINGLE STAGE COMPRESSORS VA-65 TA-65 VA-80 TA-80 VA-100 TA-100 TA-120 TWO STAGE COMPRESSORS HVA-65 HTA-65 HTA-65H HTA-80 HTA-100 THA-100H HTA-120
